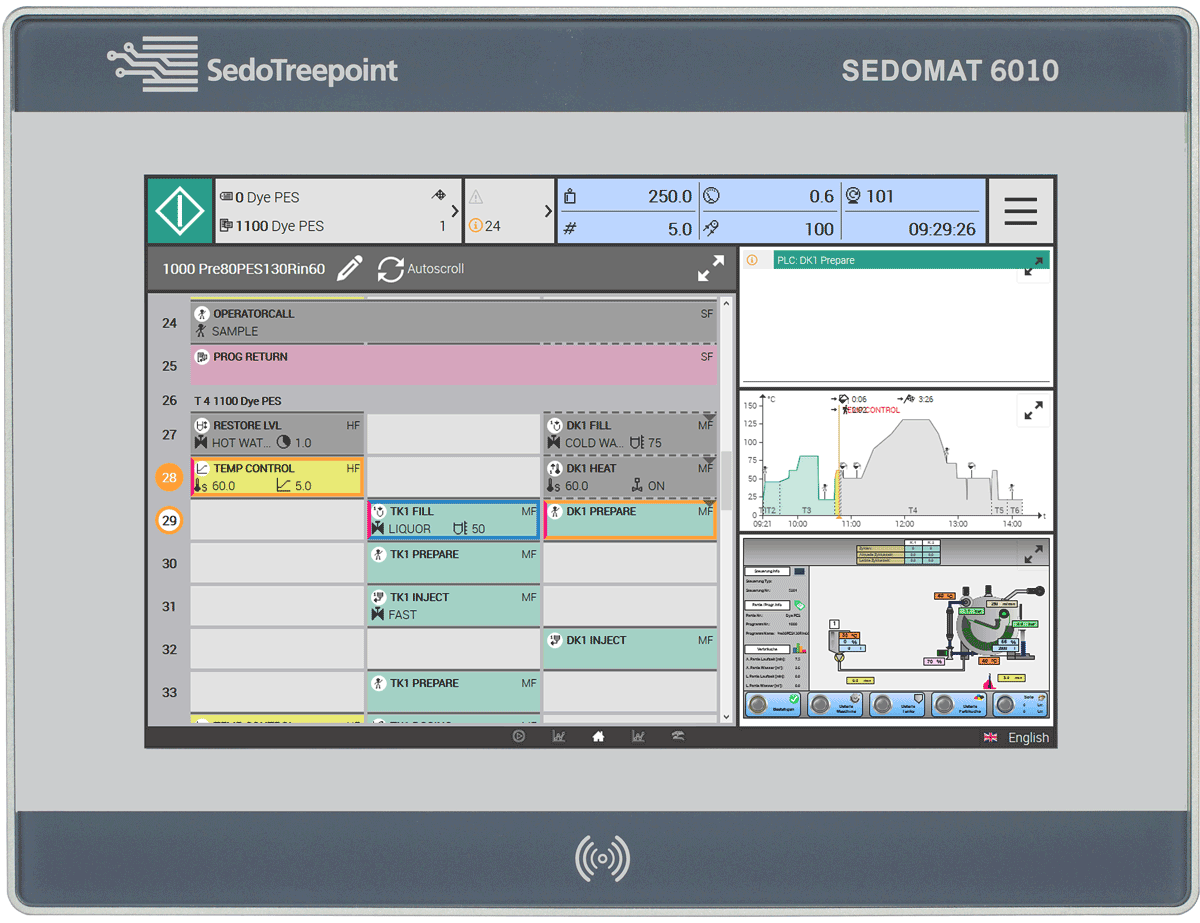

Sedomat 6010

Cost-effective, 10-inch LCD, high automation degree

The Sedomat 6010 is a cost-effective solution for a high degree automation specially designed to meet the requirements of Industry 4.0. By bringing the
benefits of the premium controllers together, it comes with a big 10” touch display and is equipped with Modbus RTU (RS232).

Connectivity

Learn more

Web based

Learn more

Data acquisition

Learn more

Unlimited applications

Learn more

Flexibility and
look ahead

Learn more

Impressions

Specifications

Column 1 Column 2
Bus system
  • Modbus RTU*
Internal I/O board
  • Embedded internal I/O board IO16/2 with 16 digital I/Os, 4 software counters (4 kHz), 2 hardware counters (10 kHz), 2 analog inputs, 2 analog outputs*
  • Internal I/O board IO32/6 with 32 digital I/Os, 4 software counters (4 kHz), 4 hardware counters (10 kHz), 6 analog inputs, 6 analog outputs*
SedoIO
  • SedoIO with up to two cards (analog, digital, relay)* and/or
  • External SedoIO module (max. 1 gateway with max. 6 I/O boards)*
IoT
  • MQTT
  • OPC UA
Connectors
  • RS232 and RS485 interface
  • 1 Ethernet (RJ45), 1 GBit/s
  • 1 USB 2.0 port
Column 1 Column 2
Special
  • RFID reader*
Protection
  • IP67 (Front)
Power supply
  • 24V DC, 1.0 A
Ambient temperature
  • 0 – 60°C (32 – 140°F)
Display
  • 10″ capacitive touch display
Dimension
  • 285 x 216 x 65 mm (wxhxd)
Panel cut-out
  • 270 x 196 mm (wxh) ± 1mm

*Optional configuration, customized to individual needs.
